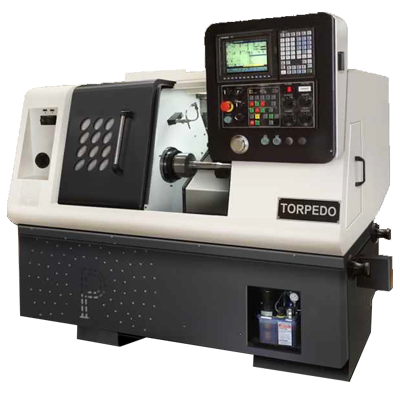

TORPEDO

    Description
  • Very compact machine
  • Roller LM Guide ways on both axes
  • 30% slant bed for better chip disposal

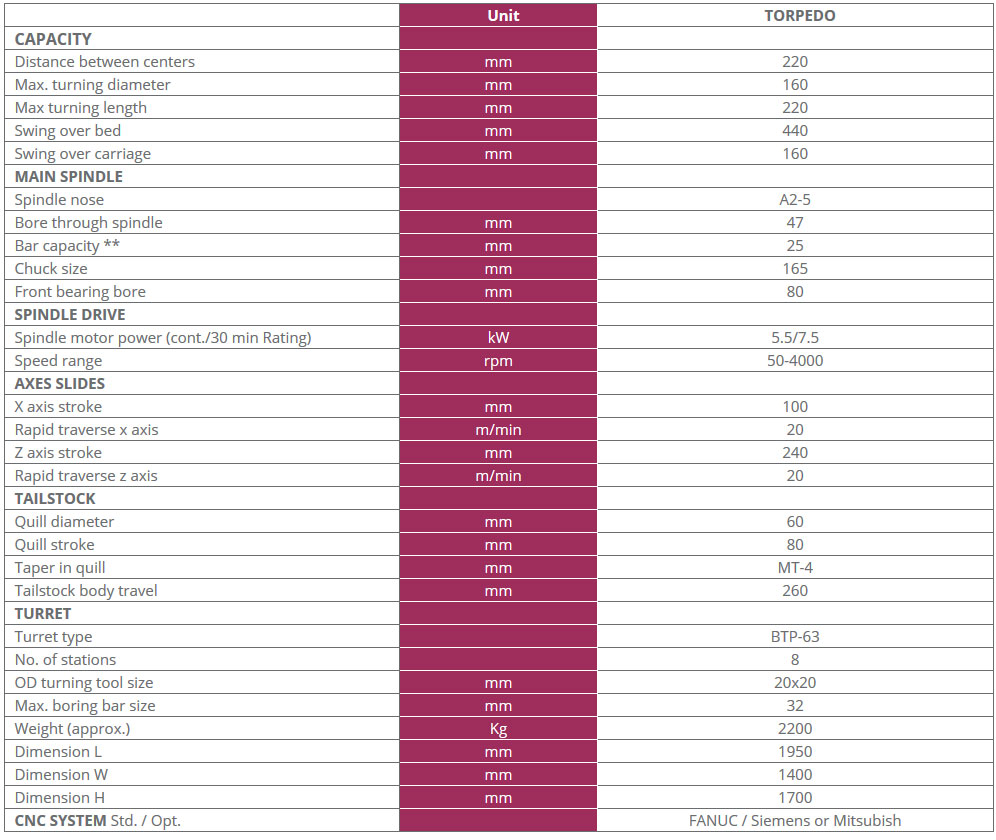

Specifications



Unit

TORPEDO

CAPACITY

Distance between centers

mm

220

Max. turning diameter

mm

200

Max turning length

mm

200

Swing over bed

mm

400

Swing over carriage

mm

180

MAIN SPINDLE

Spindle nose

A2-5

Bore through spindle

mm

53

Bar capacity **

mm

25

Chuck size

mm

165

Front bearing bore

mm

80

SPINDLE DRIVE

Spindle motor power (cont./30 min Rating)

kW

5.5/7.5

Speed range

rpm

50-4000

AXES SLIDES

X axis stroke

mm

100

Rapid traverse x axis

m/min

20

Z axis stroke

mm

240

Rapid traverse z axis

m/min

20

TAILSTOCK

Quill diameter

mm

60

Quill stroke

mm

80

Taper in quill

mm

MT-4

Tailstock body travel

mm

260

TURRET

Turret type

BTP-63

No. of stations

8

OD turning tool size

mm

20x20

Max. boring bar size

mm

32

Weight (approx.)

Kg

2200

Dimension L

mm

1950

Dimension W

mm

1400

Dimension H

mm

1700

CNC SYSTEM Std. / Opt.

FANUC / Siemens or Mitsubishi
