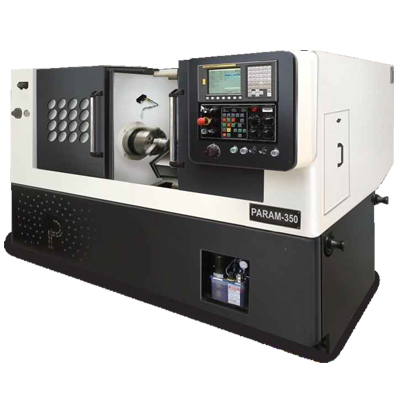

PARAM-350

    Description
  • Rigid cast iron structure
  • Heavy duty roller LM guide ways on both axes
  • Ideally suited for machining large diameters

Specifications



Unit

PARAM-350

CAPACITY

Distance between centers

mm

500

Max. turning diameter

mm

350

Max turning length

mm

500

Swing over bed

mm

500

Swing over carriage

mm

230

MAIN SPINDLE

Spindle nose

A2-6

Bore through spindle

mm

63

Bar capacity **

mm

42(51)

Chuck size

mm

250

Front bearing bore

mm

100

SPINDLE DRIVE

Spindle motor power (cont./30 min Rating)

kW

11/15

Speed range

rpm

50-3000

AXES SLIDES

X axis stroke

mm

185

Rapid traverse x axis

m/min

20

Z axis stroke

mm

500

Rapid traverse z axis

m/min

20

TAILSTOCK

Quill diameter

mm

80

Quill stroke

mm

100

Taper in quill

mm

MT-4

Tailstock body travel

mm

450

TURRET

Turret type

BTP - 80

No. of stations

8

OD turning tool size

mm

25 x 25

Max. boring bar size

mm

40

Weight (approx.)

Kg

3650

Dimension L

mm

2300

Dimension W

mm

2200

Dimension H

mm

1690

CNC SYSTEM Std. / Opt.

FANUC / Siemens or Mitsubishi
